Rigid-flex PCB Fabrication Service

Get an instant quote

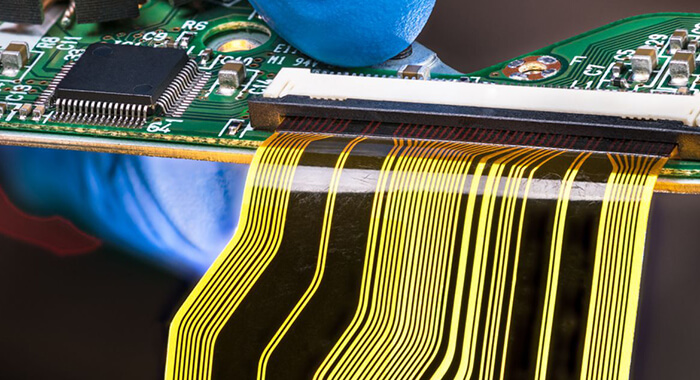

Rigid-flex PCB Technology Continues to Grow in Popularity

The unique combination of rigid and flexible components offers versatility and reliability, making it an ideal solution for various industries, including wearable technology, medical devices, automotive systems, and IoT applications. As the demand for innovative and adaptable electronics rises, rigid-flex PCBs are expected to play a pivotal role in meeting these evolving requirements, driving advancements in design, materials, and manufacturing techniques to support the development of next-generation products.

Rigid-flex PCB technology's impact on the electronics industry

Rigid-flex PCB technology's impact on the electronics industry

Miniaturization

Rigid-flex PCBs support the trend toward miniaturization in electronics, allowing for smaller and lighter devices with increased functionality while maintaining high performance and reliability.

Design innovation

The versatility of rigid-flex PCBs enables the creation of complex and innovative designs, which can conform to non-planar surfaces and accommodate unique geometries, pushing the boundaries of electronic device design.

Simplified assembly

By combining rigid and flexible components into a single PCB, rigid-flex technology simplifies the assembly process, reduces the number of components, and lowers overall production costs.

Eco-friendly solutions

The adoption of rigid-flex PCB technology can contribute to more sustainable and environmentally friendly electronic devices by reducing material waste and promoting energy-efficient designs.

Get an instant quote

Common Materials and Properties of Rigid-flex PCBs

PCBWay adheres to the highest quality standards in material selection
Adhesive Polymide
Flexibility (2mm radius) Good
Tear strength 500g
Strip strength in the air 1750N/M
Eatching>=20% Bad
Working temperature 85~165
Chip Good
Adhesiveless Polymide
Flexibility (2mm radius) Best
Tear strength 500g
Strip strength in the air 1225N/M
Eatching>=20% Good
Working temperature 105~200
Chip Best

Advantages of PCBWay's Rigid-flex PCB Service

High quality
Customization
Competitive pricing
Excellent customer support
Extensive manufacturing capabilities
High quality

Advantages

PCBWay is committed to providing high-quality rigid-flex PCBs, using top-grade materials and state-of-the-art manufacturing equipment to ensure optimal performance and reliability.

Get an instant quote
Customization

Advantages

PCBWay offers a high level of customization in the design and manufacturing of rigid-flex PCBs, catering to diverse project requirements and accommodating complex designs.

Get an instant quote
Competitive pricing

Advantages

PCBWay provides cost-effective solutions for rigid-flex PCB fabrication, offering competitive pricing without compromising on quality, making their services accessible to a broad range of customers.

Get an instant quote
Excellent customer support

Advantages

PCBWay has an experienced team of engineers who work closely with clients to develop tailored solutions and ensure each rigid-flex PCB meets specific requirements and design constraints. Their customer service team is also available to address any concerns or questions throughout the fabrication process.

Get an instant quote
Extensive manufacturing capabilities

Advantages

PCBWay's advanced manufacturing capabilities can accommodate a wide range of rigid-flex PCB requirements, including different layer counts, material options, and surface finishes, ensuring a suitable solution for various applications.

Get an instant quote

Ability in Process Technology

Feature Capability
Layer 26L
Min. Track/Spacing 0.065 mm/0.065 mm
Min. Hole/pa Size 0.10/0.35 mm
Rigid-Flex Thickness 0.25-6.0mm
MAX CU Thickness 4 OZ
Drilling accuracy +/-0.05 mm
PTH diameter tolerance +/-0.05 mm
MAX WPNL SIZE 620 mm × 500 mm
Finish copper (Flex Part) 0.5-2oz
Finish copper (Rigid Part) 1-4oz
Surface treatment ENIG, Electric gold, IM-Ag, Electric Ag, HASL, HASL-LF, IM-Sn, Electric Sn, OSP, Caborn, Pt, NI-Pd-AU
Max board thickness: PTH diameter 13:1
Build time 7-20 days
RFQ 1-2 days
Process Capability Standard Speciation
Min.Trace Width/Space 3mil 2mil
Hole size(drilling) Φ6mil Φ2mil(laser)
Hole size(punching) Φ20mil Φ20mil
Min. via hole ring Φ6mil Φ5mil
Aspect ratio limits(through holes) 8:1 10:1 (hole size≧D0.30mm)
Aspect ratio limits(blind holes) 1:1 1:1
Layer registration ±3mils ±2mils (LDI)
Tolerance Unit: mm Standard Speciation
Hole size ±0.05 ±0.03
Conductor Width ±0.03 ±0.02
Accumulated Pitch ±0.05 ±0.03
Outline Dimension ±0.10 ±0.05
Conductors To Outline ±0.10 ±0.075
Impedance and Resistance ±10% ±7.5%
Physical Specifications Specifications Reference
Peeling Strength 0.5N/mm IPC-6013 3.6.4
Solder Heat Resistance 260°C±5°C 10S IPC-6013 3.7.1
Insulation Resistance 500MΩ IPC-6013 3.9.4
Dielectric Strength 500Vdc, +15, -0 IPC-6013 3.9.1
Surface Resistance 5×1012Ω IPC-TM-650 2,5,17
Volume Resistance 1×1015Ω-cm IPC-TM-650 2,5,17
Dielectric Constant 3.0 MIL-P-55617

Featured Product Solutions

Flex and rigid-flex PCBs are widely used across various industries due to their unique combination of flexibility, durability, and design versatility. Applications include wearable devices, medical equipment, aerospace and defense systems, automotive systems, consumer electronics, industrial automation, and telecommunications.

Manufacturing Production Capacity

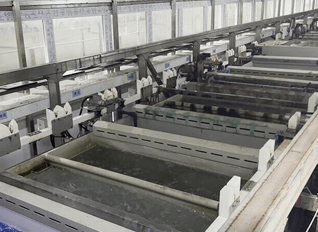

Upgrading of copper deposition line
Upgrading of copper deposition line
Improve the process capability of PTH sunk copper (especially blind holes) to provide customers with high reliability products.
VCP copper plating line
VCP copper plating line
Enhance copper plating capacity, improve copper plating uniformity, and have HDI hole filling capability.
4-wire flying probe tester
4-wire flying probe tester
Better discriminate the product micro open circuit, micro short circuit, provide high precision resistance test requirements, make the product more reliable.
LDI laser direct imaging exposure machine
LDI laser direct imaging exposure machine
Achieves higher resolution while balancing the need for high alignment accuracy and high throughput.
Vacuum press
Vacuum press
Enhance the effect of laminating rigid-flex PCBs and multilayer PCBs.
Laser equipment
Laser equipment
Improve sample response speed as well as cover film,contour processing accuracy, with HDI laser drilling capability.

PCBWay's Advantages

PCBWay offers a wide range of PCB services, including flex, rigid-flex, and rigid PCB fabrication, ensuring that we can cater to diverse project requirements. We use top-grade materials and state-of-the-art equipment to guarantee optimal performance and reliability of their PCBs. PCBWay's commitment to quality, affordability, and customer satisfaction makes us a top choice for businesses and individuals seeking high-quality, customized, and reliable PCB fabrication services.

5+N
Factories
70+
Specialists
2800+
Passionate Employees
Learn more

Testing and Inspection Equipment

Salt spray tester
X-ray surface treatment thickness gauge
Metallographic section microscope
AOI inspection machine
Ion contamination tester
2D dimensional measuring instrument
Impedance tester
RoHS/HF tester

Order Online for PCB and PCB Assembly

We offer transparent pricing, with no hidden fees. Our products are made in our own factories, so you can be sure of the quality.

FAQ's

The advantage of using rigid and flexible plates?

When used in portable devices, rigid and flexible circuit boards offer the best of both worlds. Flexible circuit areas are suitable for products that need to bend in some places, while rigid circuit areas provide stability and strength for other areas of the product that need increased durability and shock absorption. Some of the main advantages include the following.

What does rigid-flex board cost?

When customers choose rigid and flexible boards for their applications, they may find possible cost savings due to reduced material usage and easier assembly. Rigid-to-flexible circuits can be designed in smaller and lighter packages because the customer only has to pay for the reduced amount of material used in the final assembly. These cost savings may also be reflected in fewer components and connectors required

What is the reliability of rigid-flex board?

Rigid and flexible circuits have higher reliability against shock and vibration. With fewer interconnect points, they maintain high performance during drop tests. The product has also become lighter, which reduces the potential for failure

What is the capacity of rigid-flex board?

Rigid - Flexible PCB areas in flexible boards offer a wider range of functionality than traditional rigid boards with wired interconnects. When the product design requires high-speed signals and controlled impedance, the flexible plate can handle the transmission load effortlessly. Flexible areas can also provide a high level of shielding against EMI and RF interference from either component from internal or external sources of the product. Another benefit of rigid-flexible circuits is that they work reliably even in harsh environment applications. The plate has good corrosion resistance, chemical resistance and UV resistance linearity. They can also withstand temperatures of up to 200°C, while being able to dissipate the heat produced.

Reduced Packaging?

By combining rigid circuit boards and flex circuits into one integrated unit, the need for wired connections becomes significantly reduced and, in some cases, eliminated. The flex area materials take up 10% of the size and weight compared to wired solutions, allowing the customer to come up with product designs that are lighter and smaller in size (Figure 2) when required. One rigid-flex circuit board can fit in places where multiple rigid boards, connectors, and wiring harnesses would not be able to, and its tighter bend capabilities offers interconnect solutions not available with any other solution.
